CREVALLE 26 HBW: Let’s Go Offshore

Versatility is a hallmark of Crevalle Boats.

So, when you started asking for an offshore center-console boat, we listened. The impressive result is the Crevalle 26 HBW, a hybrid boat that delivers exactly what you want.

It includes the same family-fisherman sensibilities Crevalle is known for, so you’ll love its performance when trolling for dolphin in the Gulf Stream as much as you’ll enjoy gathering with friends and family on a sunset bay cruise.

After reviewing the detailed specifications, head over to the Build Your Crevalle page and create a one-of-a-kind boat, just for you.

family-friendly crevalle 26 HBW

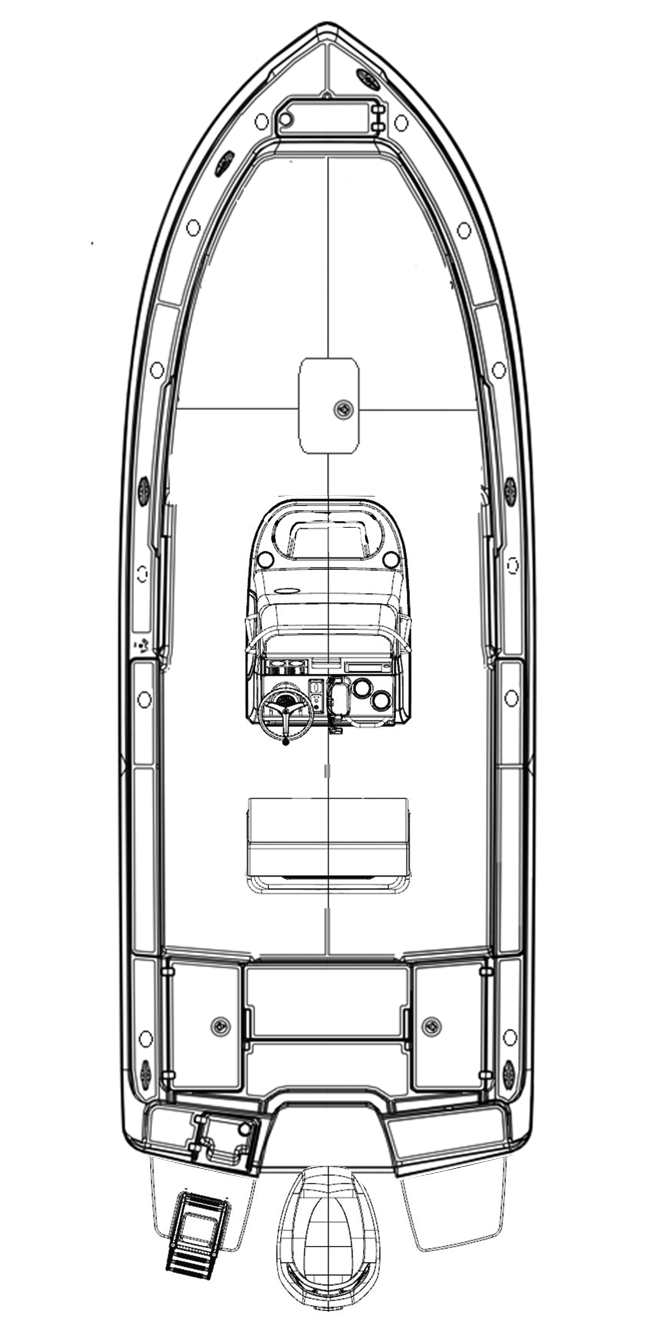

specifications crevalle 26 HBW

LOA
25' 6"
BEAM
8' 6"
deadrise
16°
engine
300 - 400 HP
Approx. Fuel
90
Draft
12 - 14 inches
Approx. weight no motor
3,600 lbs.
persons capacity
9

Videos 26 HBW

color options

white

stormcloud grey

squall grey

aquamist

royal blue

seamist blue

volcanic black

cashmere

Gel coat color samples above are to provide a likeness of the color option.
Computer monitors and printers may provide slight variations to the actual gel color.

features & options 26 HBW

Standard Hull & deck features

Standard on Our Hull & Deck

  • No wood construction
  • Epoxy coated fuel tanks
  • CRIMP- Crevalle Resin Infusion Manufacturing Process
  • 10 Year Hull Warranty
  • Black or white rub rail with Stainless Steel Insert
  • Composite Transom
  • Dedicated Anchor Locker
  • Position Control Hinges on all Hatches
  • Fiberglass Hatches Finished on both sides
  • NMMA Certified using ABYC Standards
  • Self Bailing cockpit
  • Forged Stainless Steel thru hulls with duckbill valves & ball valves
  • Integrated swim platform with 3-step fold-out stainless swim ladder
  • Standard 6” Engine Jack Plate combined with notched transom allows our boats to leap on plane in shallow water (Jack Plate all the way up) with no propeller cavitation.
  • Marelon Seacocks (Composite material, no corrosion or electrolysis)
  • Anti-Venturi thru-hull fittings (Allows pumps to operate at speed)
  • Hidden deck drains with stainless covers and duckbill valves
  • Welded one piece stern eyes
  • Deep cockpit for a safe dry ride
  • Yacht Grip, non-skid deck
  • Setback transom provides full aft deck
  • Powder coated Aluminum pipework
  • Under gunwale rod storage for (3) 8′ rods each side

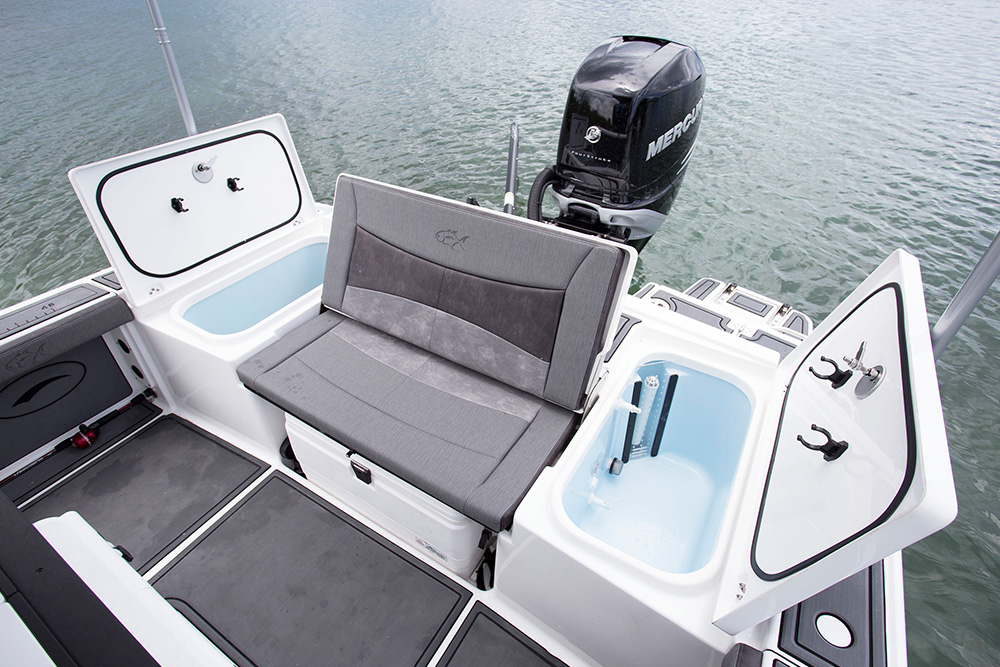

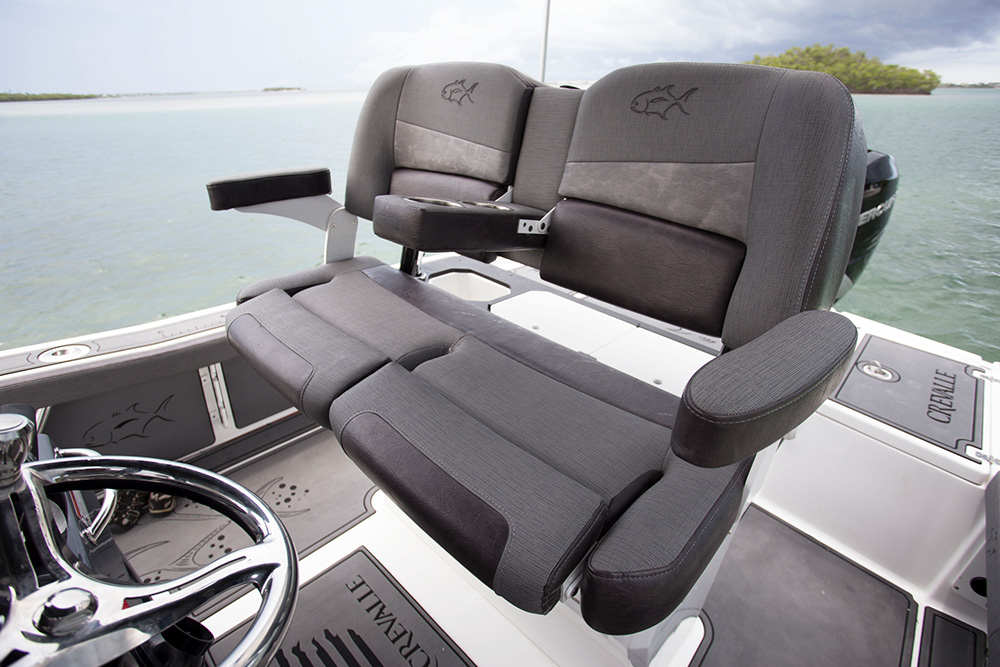

  • 40″ wide flip-up aft seat on centerline for safety
  • (2) removable 72-quart coolers
  • (6) Custom Crevalle pull-up cleats
  • (12) Gunwale Rod Holders, 4 are combination rod & cup holders
  • In-gunwale port & starboard lockable rod storage
  • Single 12’ Multifunction display and glove box (brands priced separately)
  • Floor storage for 5 Gallon Bucket

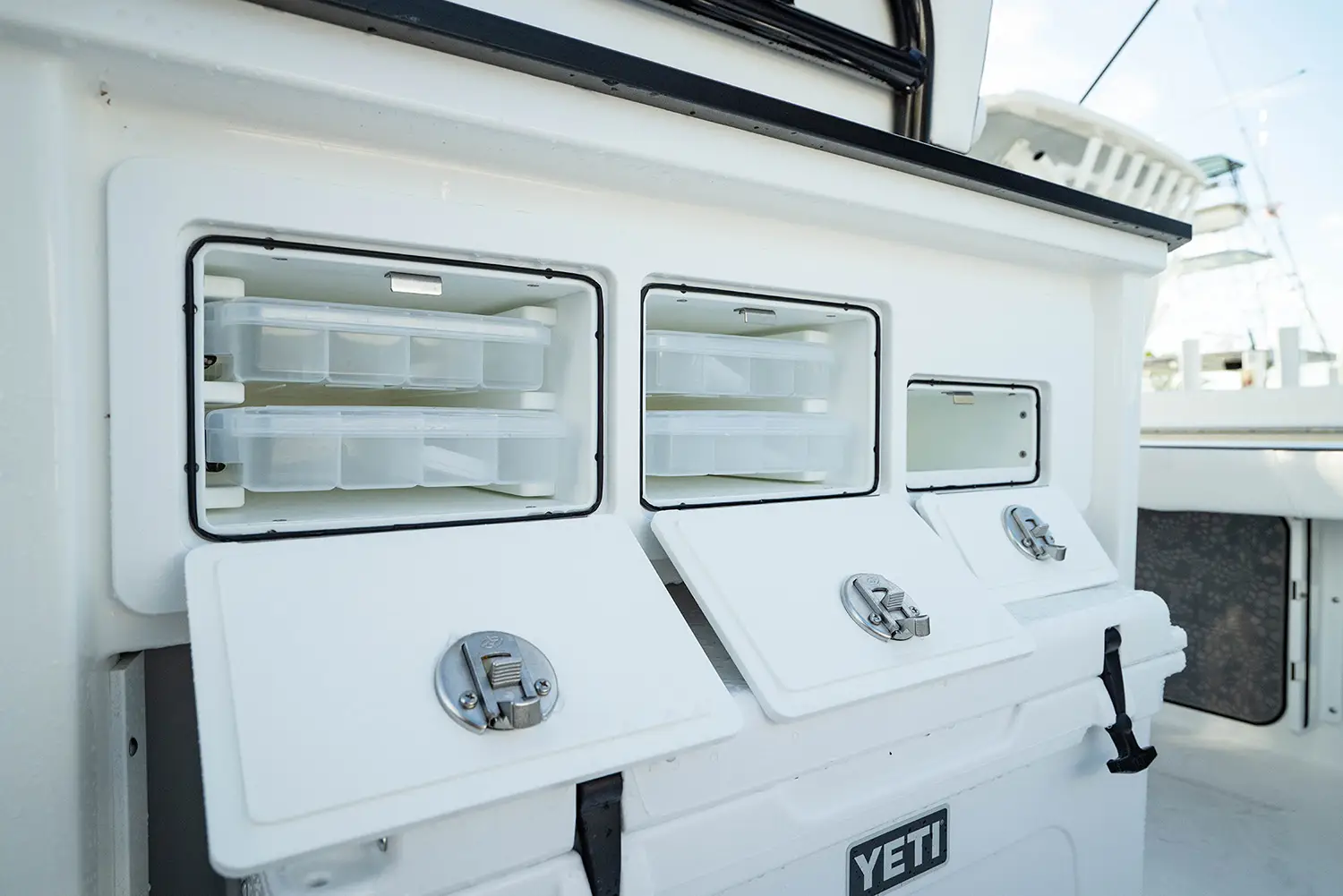

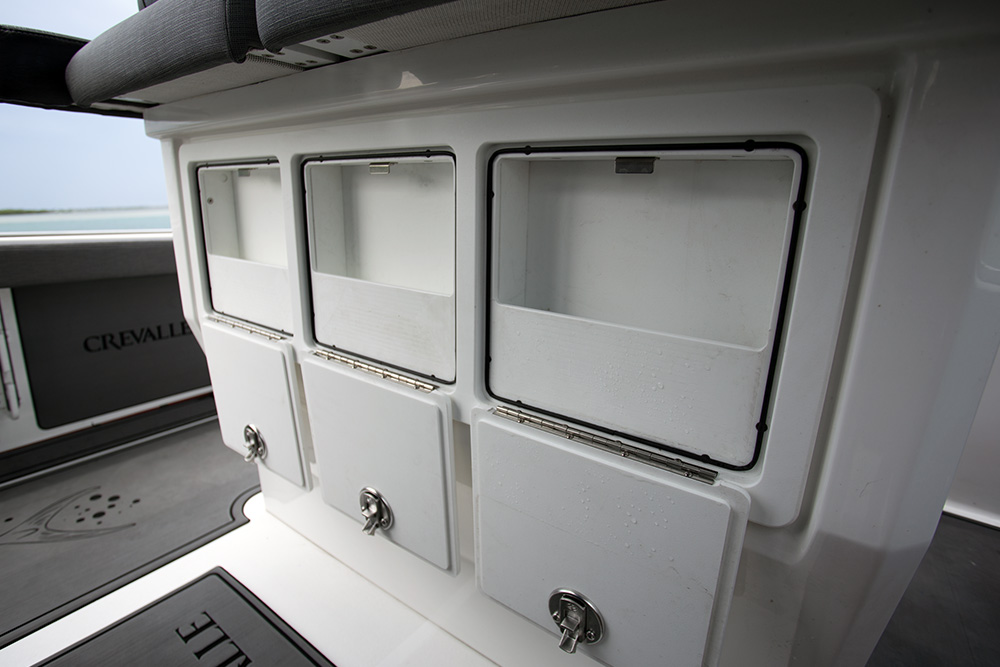

  • Custom fiberglass leaning post with backrest, rigging tray, (4) rod holders, (2) stainless cup holders, fresh water sink, (3) front glove boxes and (2) rear tackle storage
  • Pre-wired 8 AWG wiring for trolling motor
  • Trolling motor plug panel
  • Custom powder coated aluminum grab rails molded into the deck
  • 1100gph automatic/manual bilge pump
  • Fresh Water Transom Shower
  • Fuel Water separator
  • Wet Sounds Speakers
  • Trim Tabs -Lenco with LED indicators
  • (2) Forward tackle storage Centers
  • High water bilge pump

3 Live Wells

2 Release Wells

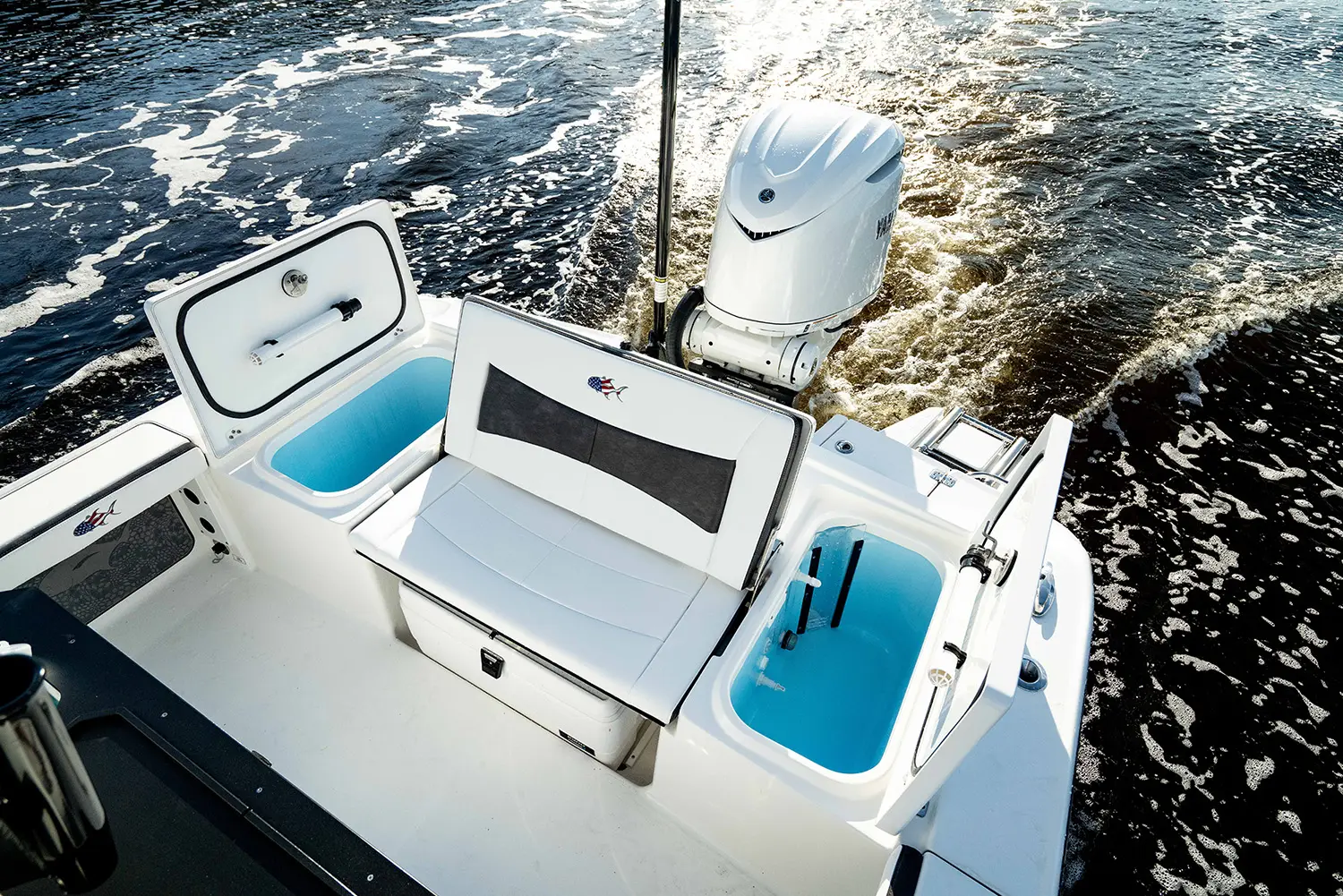

  • Insulated 28 Gallon aft release wells
  • Venturi aeration bubbler
  • Dual jets
  • Protected overflow stand pipe
  • Commercial Aquarium type aeration
  • Blue gel coat
  • 800 gph, aeration pumps
  • LED lighting
  • Intake plumbing that prevents water levels from dropping while at speed.

1 Bait Well

  • Adjustable aeration jet can be closed to convert bait well into fully insulated cooler
  • Wide opening allows easy access for cast nets
  • Side mounted overflow fitting with removable filter dome means no stand pipe to get in the way of netting bait
  • Blue gel coat
  • Sealed lid with double gasket

All Wells Feature:

  • Blue gel coat
  • Attwood 800 gph, dual port aeration pumps
  • Insulation
  • Marelon Seacocks for safety and easy in water pump service
  • LED lighting

Standard on Our Upholstery

  • Custom upholstery with contoured seating and cushions
  • Tone on tone color accents, top stitching, heat reflective vinyls and multi density foam provide maximum endurance and comfort
  • Contoured forward helm seating and leaning post cushions
  • Coaming pads (Cockpit and Bow)

Optional Engines & trolling motors

Optional Engines & Rigging

  • Yamaha
  • Mercury
  • Suzuki

Optional Trolling Motors

  • MinnKota Riptide ST 112 iPilot 36 Volt
  • MinnKota Riptide Ulterra 112 iPilot 36 Volt
  • Motorguide Xi5 105lb, 36 volt
Note: All factory rigged trolling motors come with a quick disconnect bracket and a Deltran Battery Tender Trolling Motor Plug.

Standard Helm & technical features

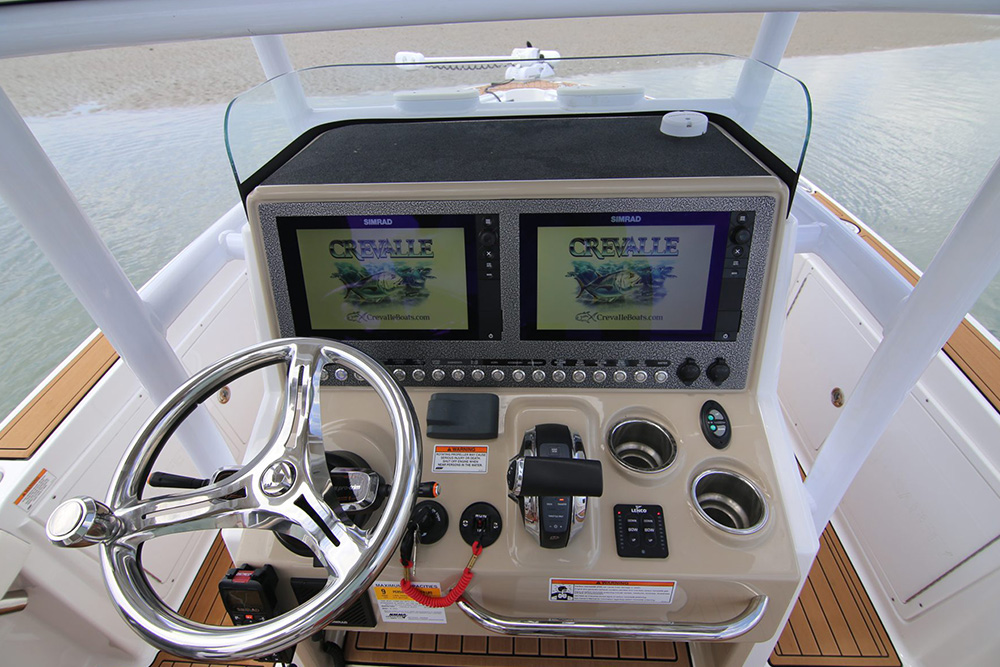

Standard on Our Helm

  • Your choice colored gelcoat helm face to eliminate secondary glare
  • 12″ GPS multifunction display with glove box (Brands priced separately)
  • Space for a second optional 12″ display (removes glove box)
  • Deluxe stainless steering wheel with power knob
  • Integrated, dual height, non-skid foot rests
  • Welded 316 stainless steel console grab rail
  • Compass
  • Dual Note Stainless Horn
  • (2) USB accessory plugs
  • Portside helm door
  • Backlit switch labels
  • Dual illuminated stainless cup holders
  • Console door with trash bag holder
  • Individual circuit breakers
  • LED lighting inside storage
  • Black Box Bluetooth ready stereo
  • Integrated engine data on electronics
  • Sea Star solutions hydraulic steering with tilt helm
  • Console tool rack with hook/knife/plier holders
  • Helm panel with ring lit, push button, stainless switches, and backlit function labels

Technical Standards

  • Labeled tinned copper wiring
  • LED cockpit lighting throughout, blue or white selectable
  • Deutsch water resistant plugs on harnesses
  • Sealed Bussbars
  • Heat shrink electrical terminals
  • Circuit breakers (not fuses)
  • 8 AWG trolling motor harness
  • Helm mounted battery switch
  • LED Navigation lights
  • Deluxe battery hold down trays
  • High Water bilge pump

Options

Optional Hull & Deck Equipment

  • Swim platform, port side with a ladder
  • Swim Platform, stbd side
  • Colored Hull Sides
  • Colored Hull Bottom

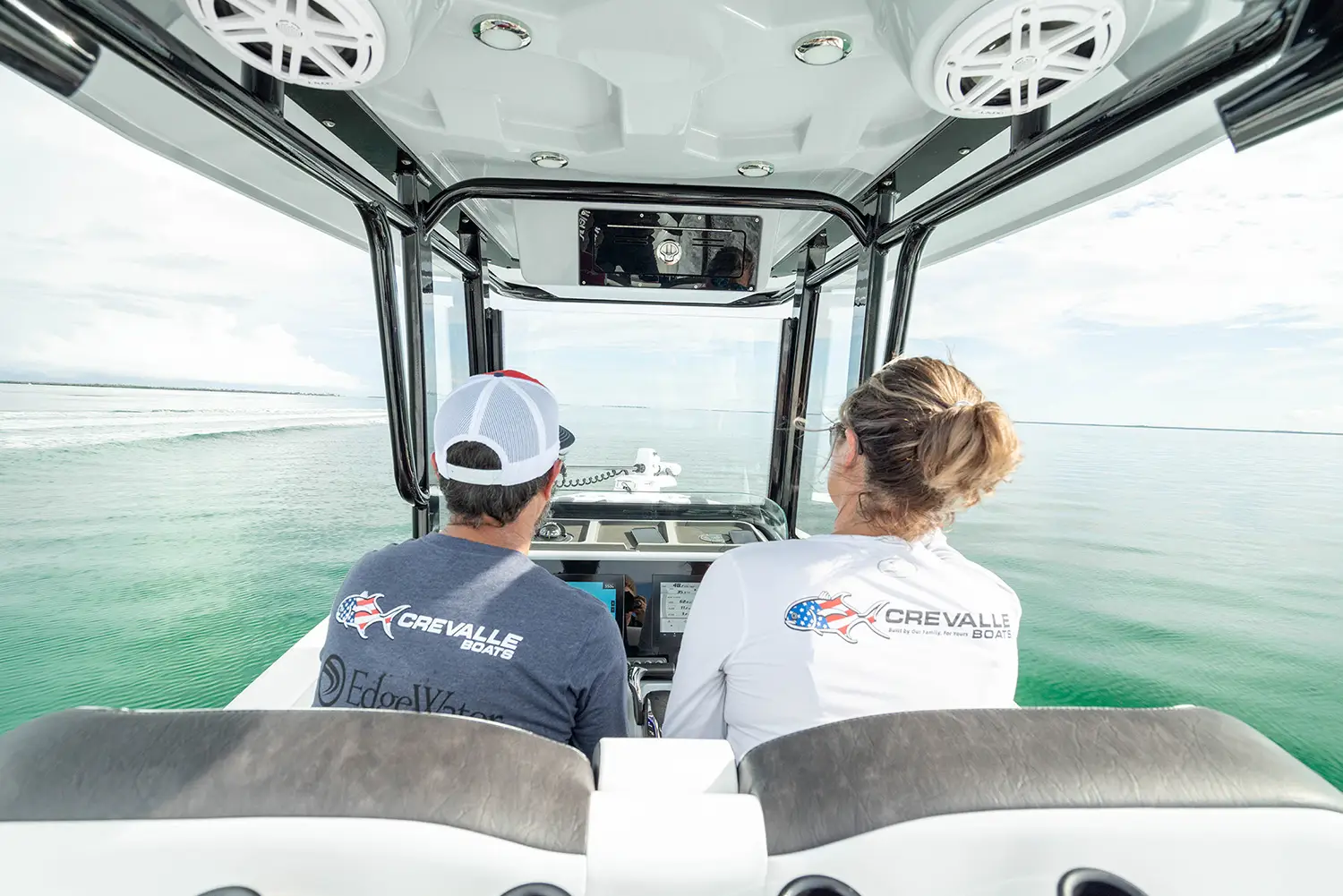

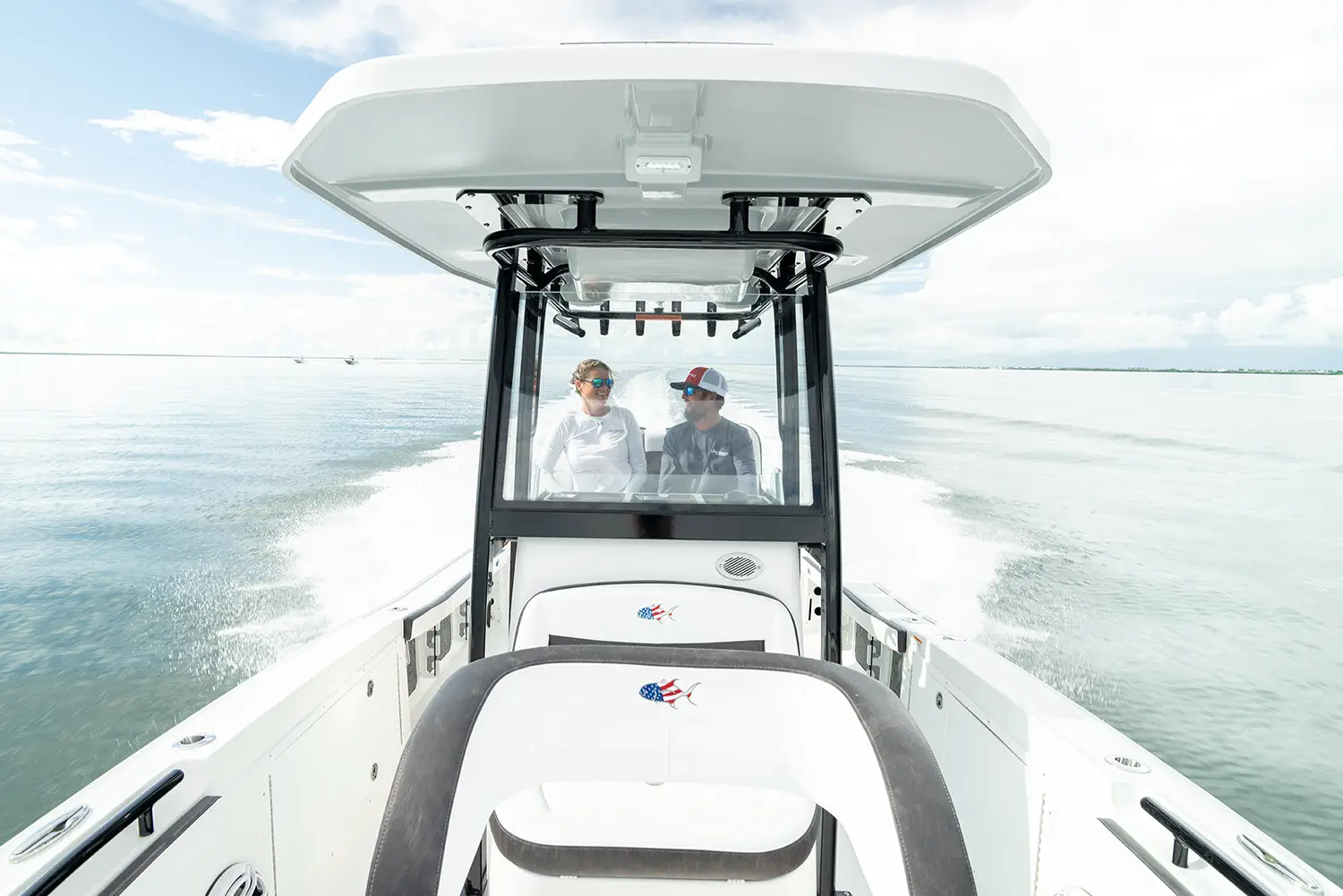

  • Hardtop- powdercoated frame with clear coat, with extended height winshield, LED (white/blue) overhead lights, mister system, (2) additional speakers & (4) rod holders
  • Hardtop- powdecoated frame with clear coat, with three-sided embedded glass, LED (white/blue) overhead lights, mister system, (2) additional speakers & (4) rod holder

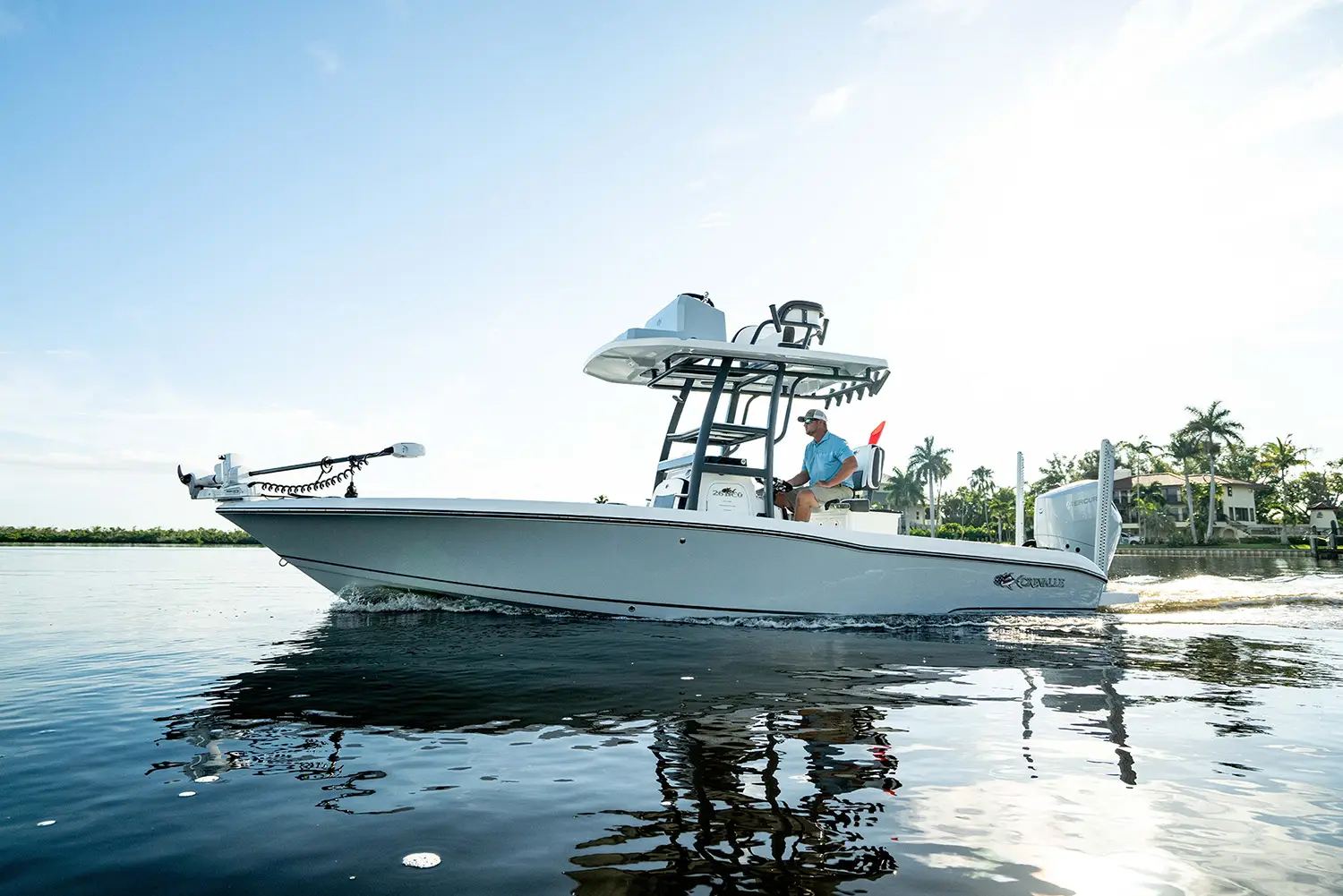

  • Tower with a full second station and powered sliding hatch
  • Mooring Cover
  • Removable Ski Pylon
  • Porta Potti
  • Synthetic Flooring in multiple configurations

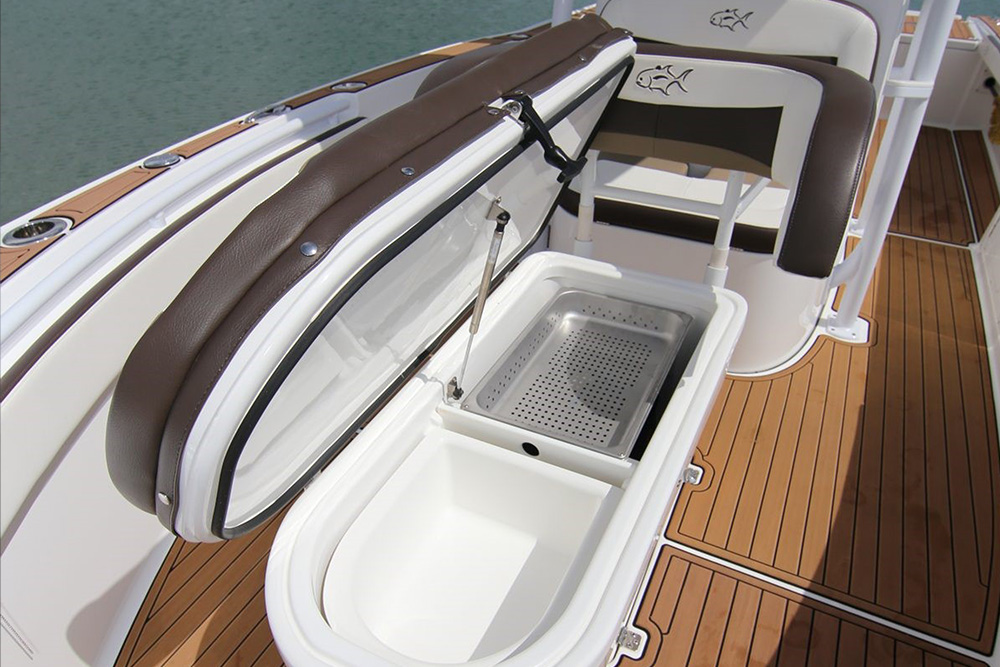

  • Coffin Box Cooler (170 QT)
  • Deluxe leaning post with fold-down armrests and bolsters, tackle center and slide out Yeti

Optional Upholstery

  • Coffin Box Cooler Cushion Package with backrest
  • (2) Leaning Post Upgrades

Optional Mechanical/Electrical

  • Power Pole – 8′ Blade, Black or White
  • Power Pole – 10′ Blade, Black or White
  • Black Box VHF with Antenna
  • Simrad Radar
  • Stainless Steel Prop
  • Battery Charger (4 Bank)
  • Battery Charger (2 Bank)
  • Underwater LED Lights (2)
  • Simrad NSS EVO 12 – 12″ Touch Display with Total Scan transom mount transducer
  • Deluxe Stereo system

*Standards and options are subject to change at any time at the discretion of the manufacturer.
