CREVALLE 24 HCO: Fishing, Family & Fun
It all started here.
When we decided to build our HCO line of hybrid boats in 2013, we had one simple goal: Design a great fishing boat the family will enjoy. That meant style and comfort were just as important as fishing necessities. So, we asked boat owners what they wanted in a hybrid boat, and then we designed the Crevalle 24 HCO to deliver on that expectation.
We keep the family in mind by including:
- custom fiberglass leaning post w/backrest
- two removable coolers

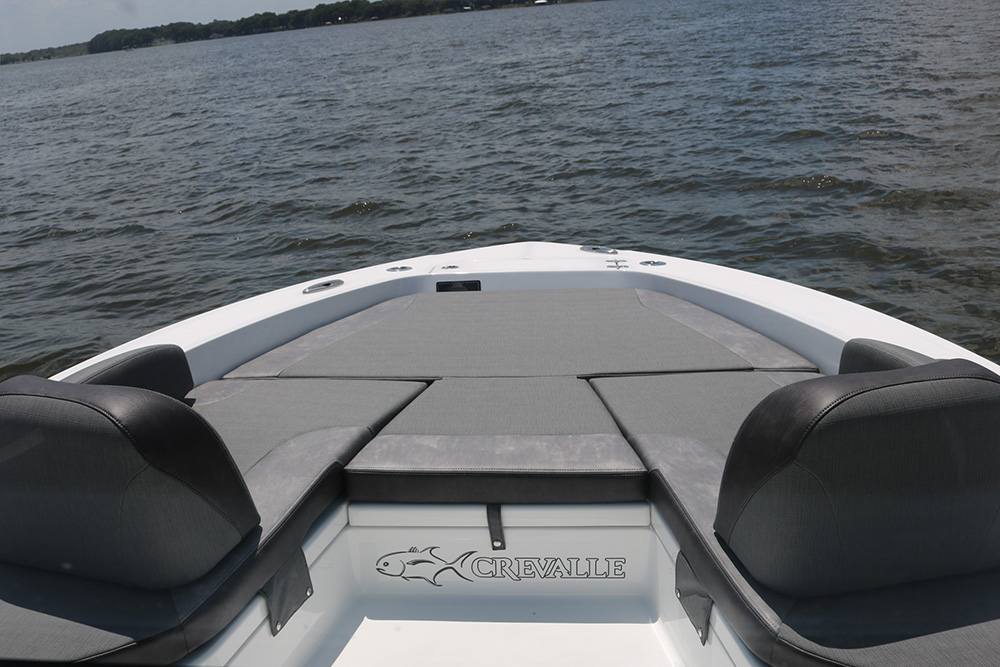

- forward seating package with removable /reversible backrest
And, when it comes to fishing, we added features you wanted most:
- two aft 28 gallon bait/release wells
- one forward 12 gallon bait well
- lockable forward port/starboard rod storage for 10 rods or 5 rods starboard side and a portside fishbox
- dedicated anchor storage
- in-deck, cast-net storage
The 24 HCO is designed with the family and the fisherman in mind. Review the detailed specifications, and then customize your 24 foot center console bay boat to fit your style, performance and comfort needs. Build Your Crevalle today

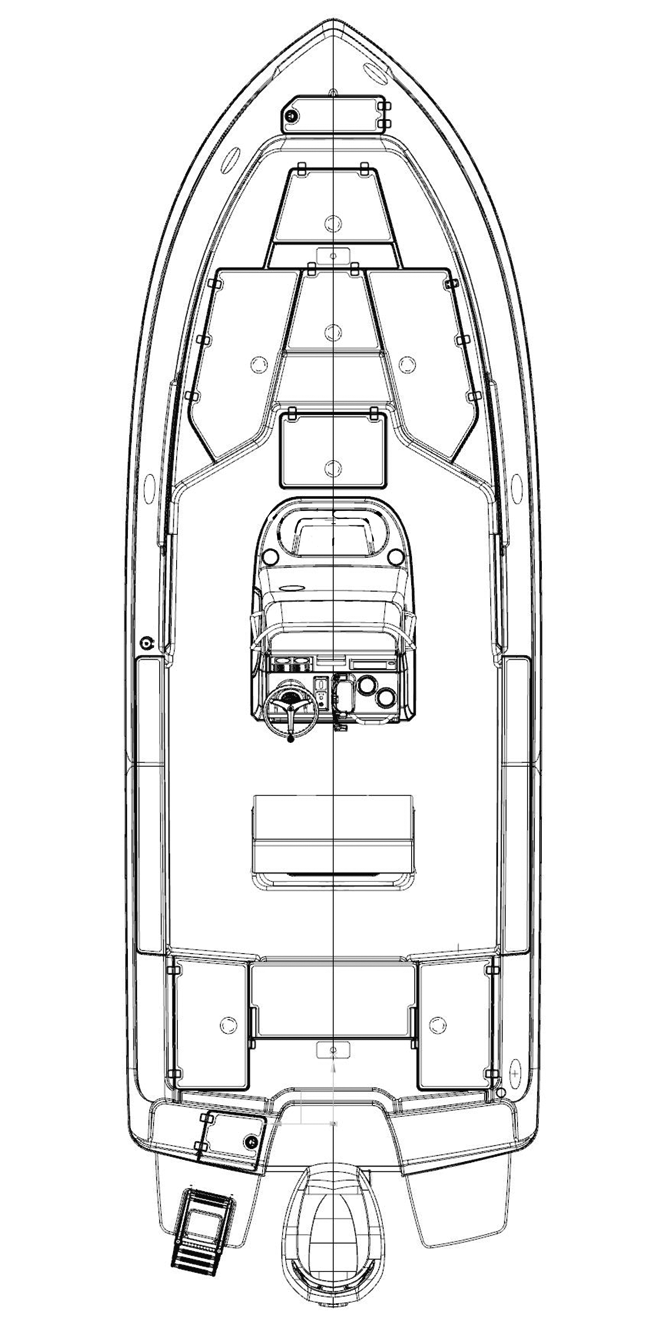

specifications crevalle 24 HCO
LOA
23' 6"
BEAM
8' 6"
deadrise
16°
engine
300 HP
Approx. Fuel
80
Draft
12 - 14 inches
Approx. weight no motor
3,800 lbs.
persons capacity
8
Videos 24 HCO
color options
white
stormcloud grey
Kingston grey
aquamist
Stars & Stripes
light blue
volcanic black
Gel coat color samples above are to provide a likeness of the color option.
Computer monitors and printers may provide slight variations to the actual gel color.
features & options 24 HCO
Standard Hull & deck features
Standard on Our Hull & Deck
- All composite no wood construction
- Epoxy coated fuel tanks
- “CRIMP” – Crevalle Resin Infused Manufacturing Process
- 10 Year transferable hull warranty
- “Razor” LED spotlight/stripe light on the hardtop

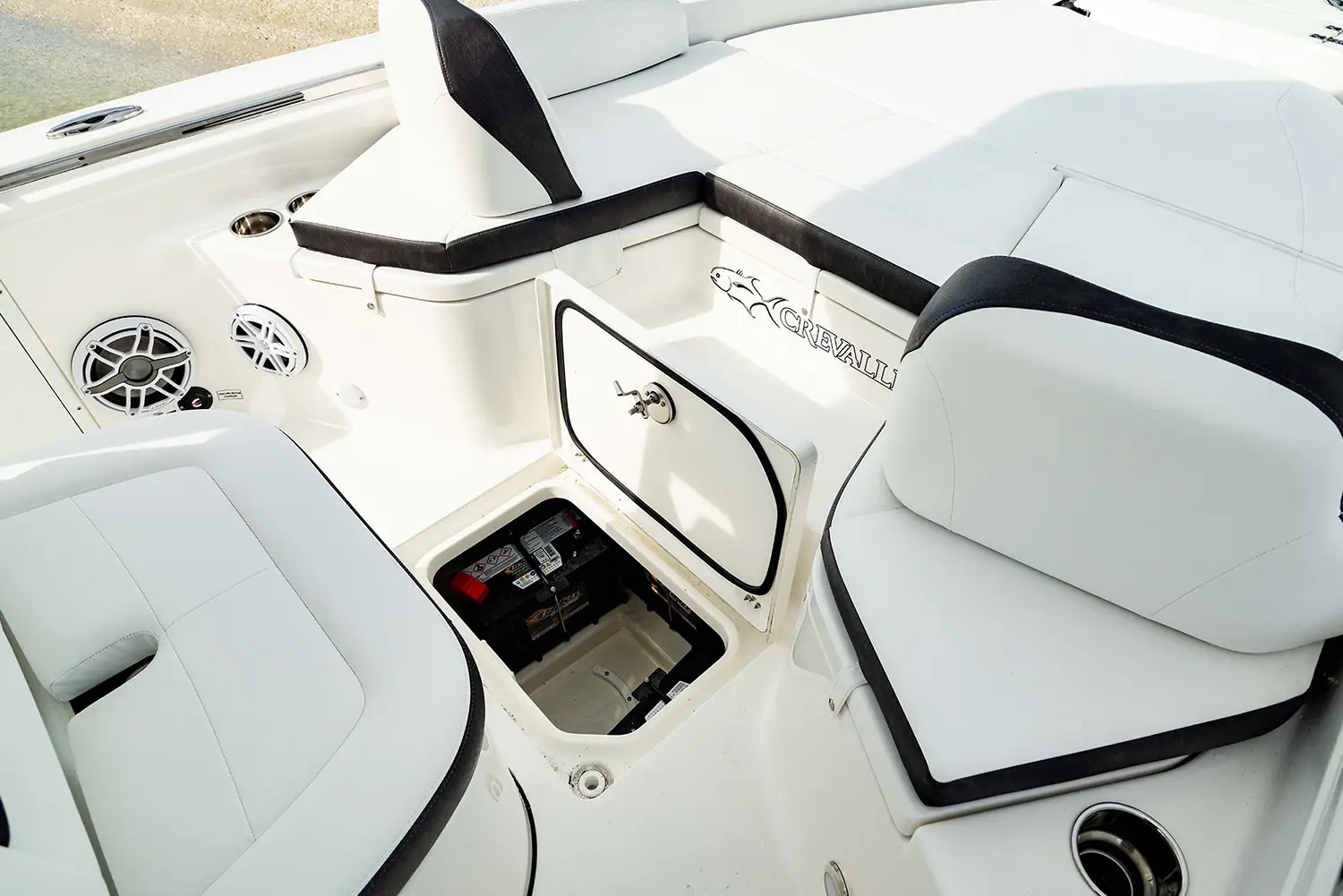

- Custom forward deck cushion package features easily removable/reversible molded backrest
- Tilt helm with a custom stainless steel steering wheel
- Black or white rub rail with stainless steel insert
- Composite transom
- Dedicated anchor locker
- Position control hinges on all hatches
- Fiberglass hatches finished on both sides
- NMMA certified using ABYC standards
- Self bailing cockpit
- Forged stainless steel thru hulls with duckbill valves & ball valves
- Portside swim platform with a telescoping stainless steel swim ladder

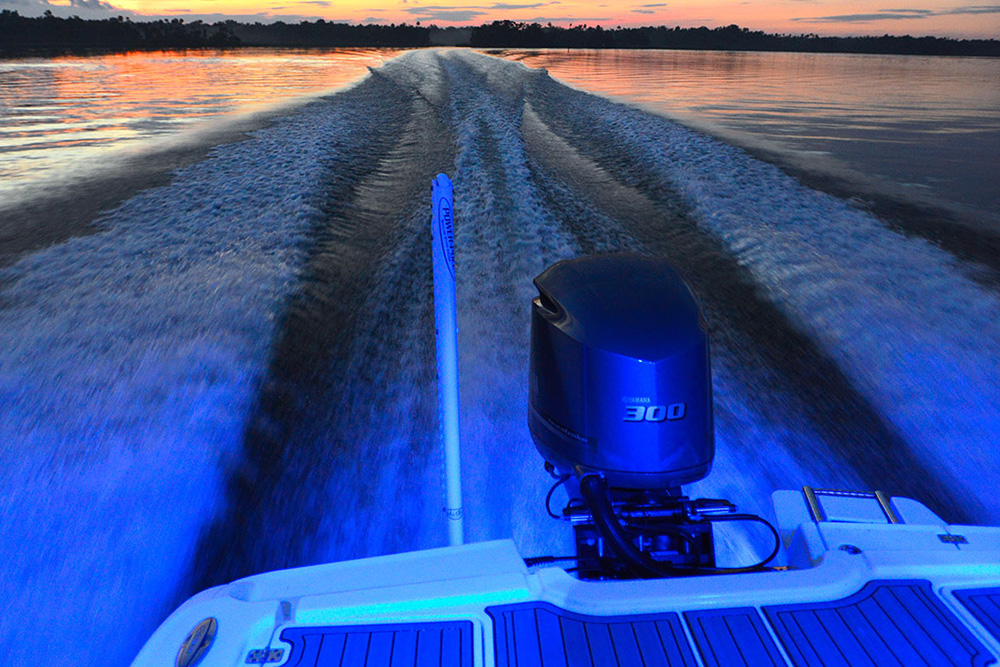

- Standard 6” engine jackplate combined with notched transom allows our boats to leap on plane in shallow water (jack plate all the way up) with no propeller cavitation.
- “Marelon” seacocks (composite material, no corrosion or electrolysis)
- Anti-Venturi thru-hull fittings (allows pumps to operate at speed)
- Hidden deck drains with stainless covers and duckbill valves
- Welded one piece stern eyes
- Deep cockpit for a safe dry ride
- Yacht Grip, non-skid deck
- Setback transom provides full aft deck
- Under gunwale rod storage for (3) 8′ rods each side

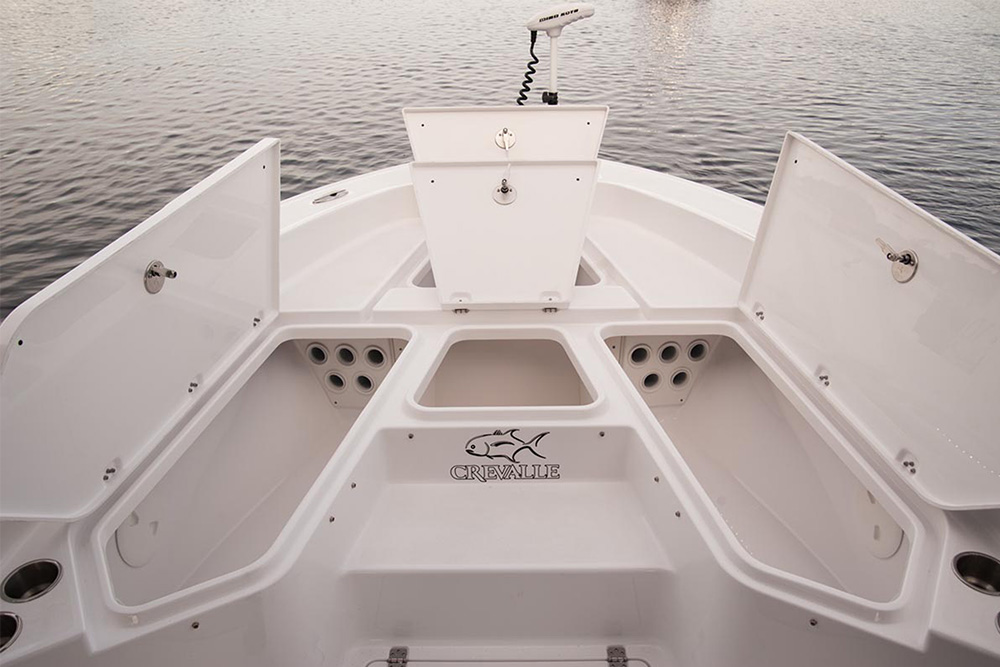

- Forward rod storage with room for (10) 7′-6″ rods or 5 rods starboard side and an insulated portside fishbox

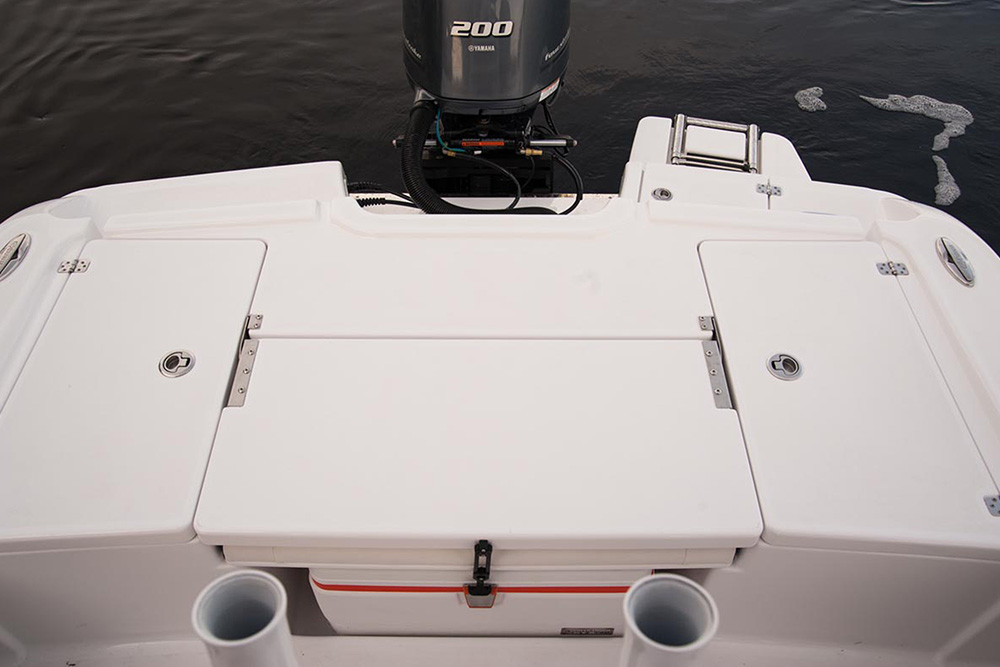

- 40″ wide aft flip up aft seat on centerline for safety

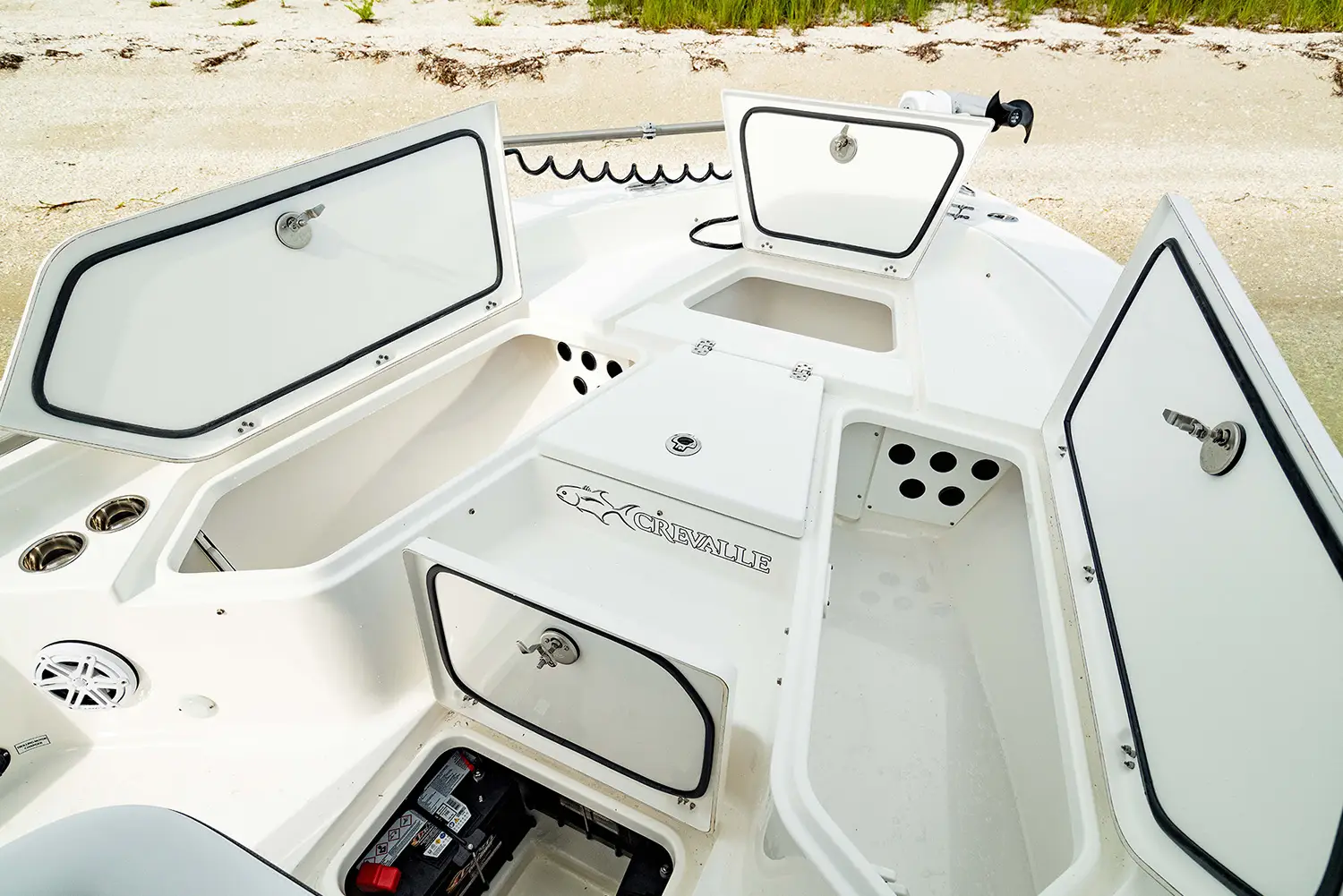

- Bow dry storage (with an LED light for the main storage locker)
- Two removable coolers
- (6) Standard in gunwale rod holders, (2) rod/cup holders
- (6) Custom “Crevalle” pull-up cleats
- (6) Stainless steel cup holders
- Port and starboard in-gunwale safety gear storage
- Single 12″ multifunction display (Garmin or Simrad)
- In-floor storage for a 5 gallon bucket

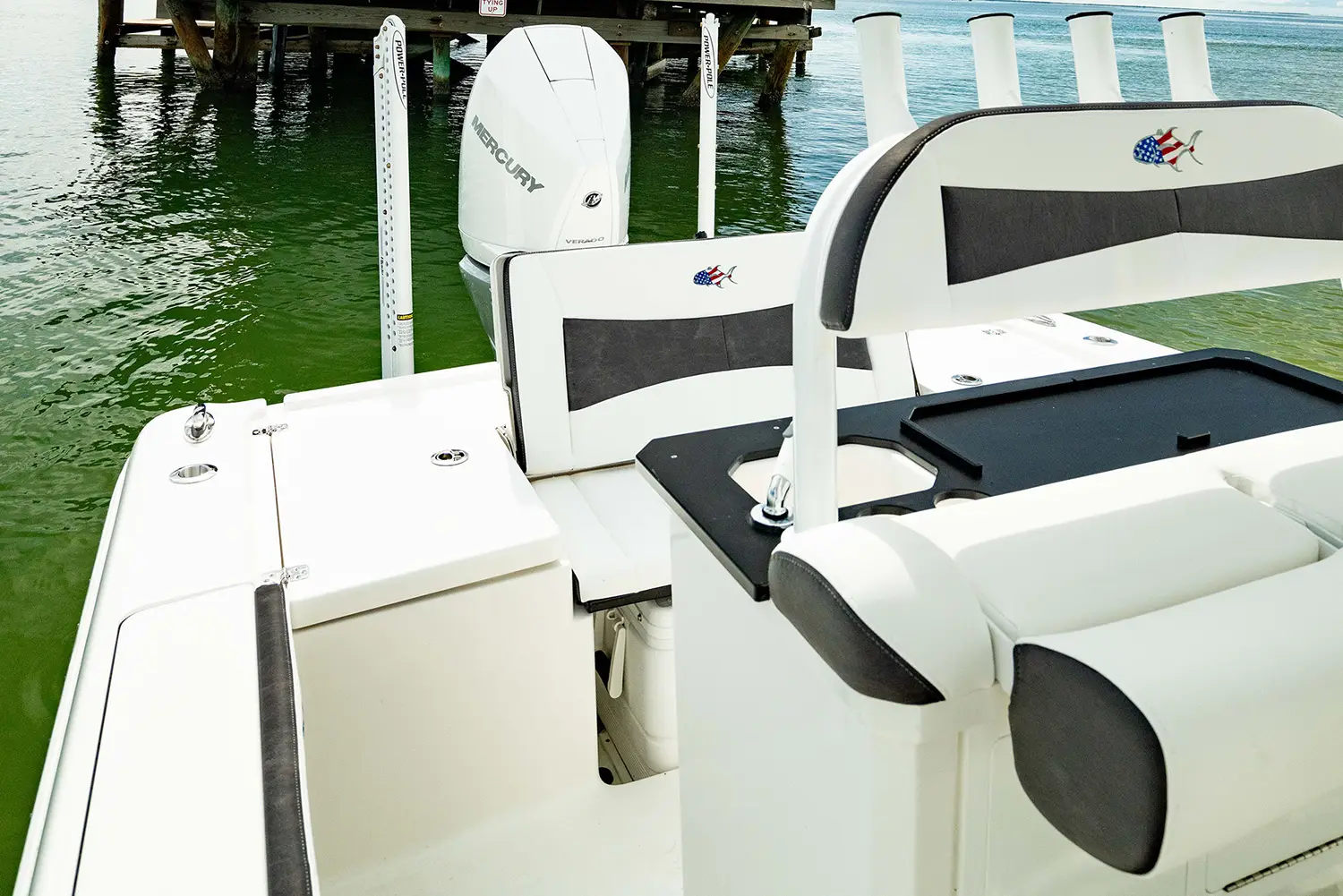

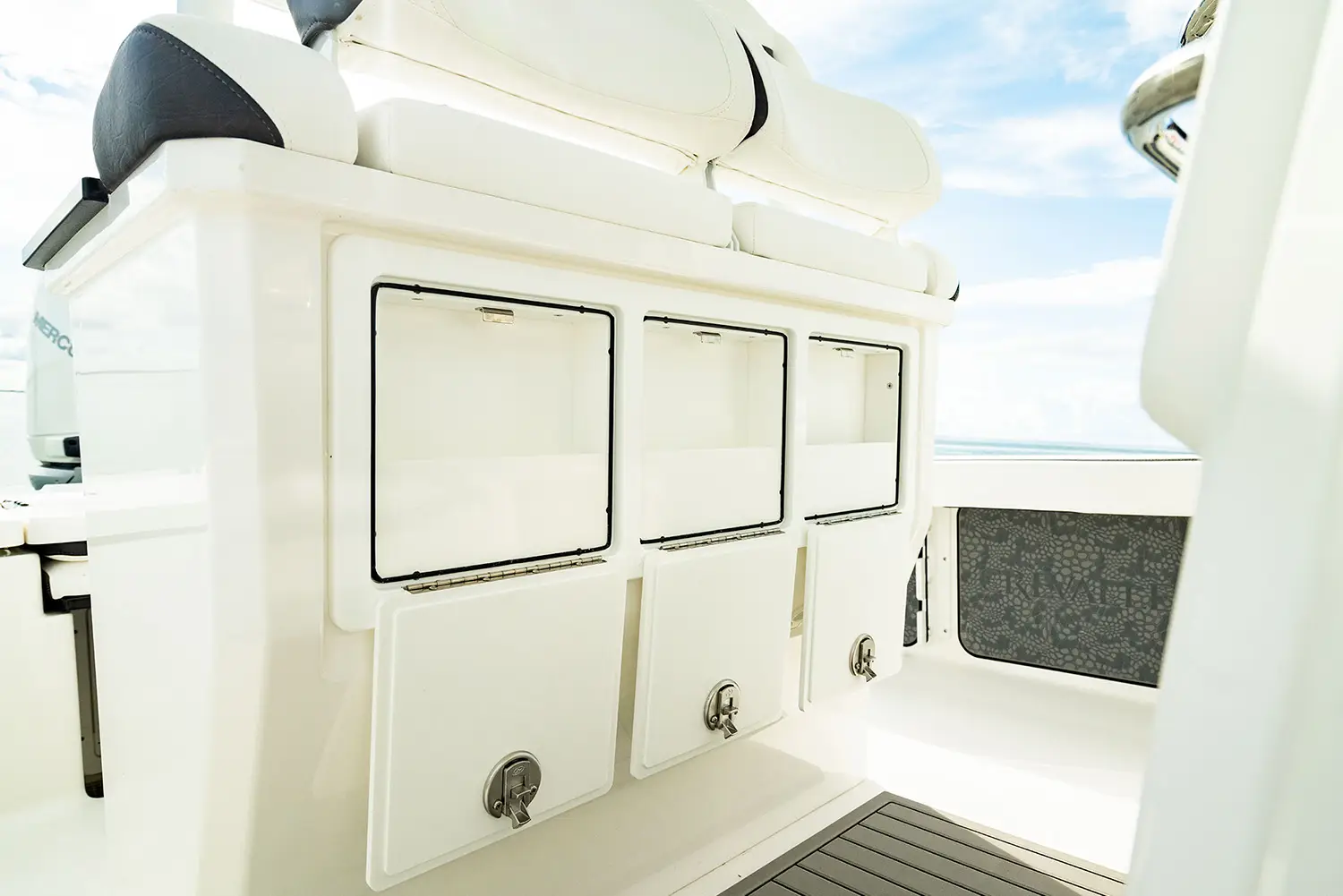

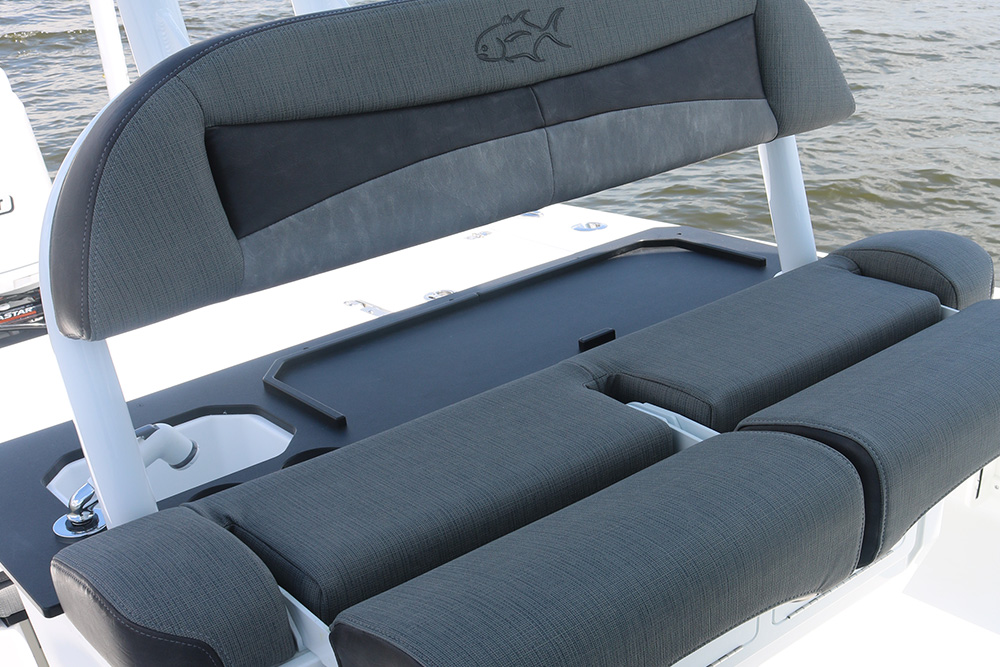

- Custom fiberglass leaning post with backrest, rigging tray, tackle storage (2 trays), sink, forward glove boxes (3), removable cooler, cup holders & rod holders (4)
- MY 2024 fiberglass hardtop with a powder coated aluminum “D” tube frame, three sided embedded glass, LED (white/blue) overhead lights, mister system, speakers (2) & rod holders (4)
- Unobstructed aft fishing deck
- Pre wired 8 AWG wiring for trolling motor
- Trolling motor plug panel
- Custom flat bar grab rails molded into the deck
- Freshwater transom shower
- Fuel water separator
- “JL” stereo system
- Standard automatic/manual bilge pump and high water bilge pump
- Battery charger (2 bank) – engine and house batteries
- Battery charger (3 bank) – trolling motor batteries
- Underwater lighting
- Coaming pads
- Illuminated mechanical/bilge area
3 Live Wells

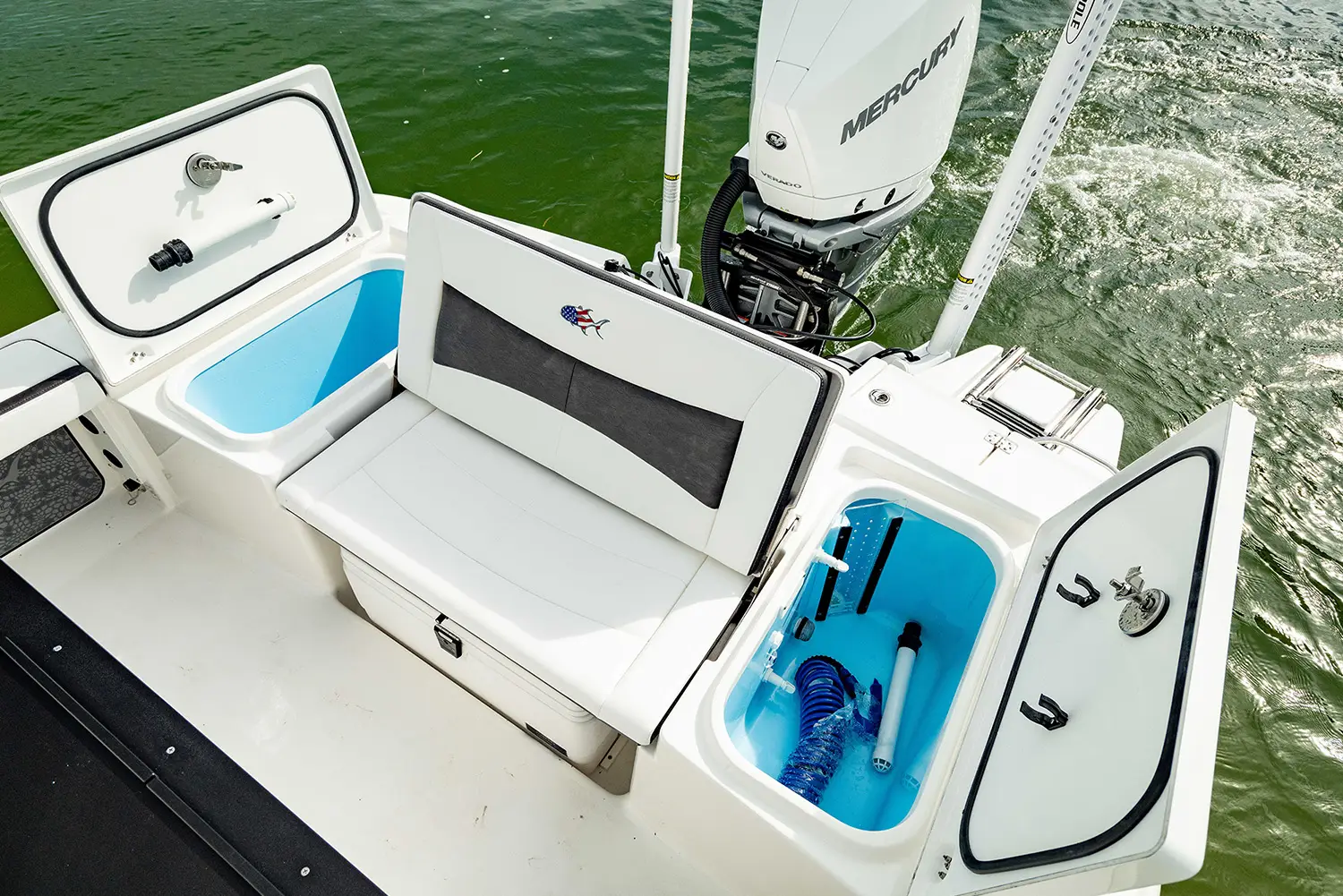

Aft Release Wells (2)
- Insulated 28 gallon aft bait/release wells
- Venturi aeration bubbler
- Dual livewell jets
- Protected overflow standpipe
- Commercial aquarium type aeration
- Light blue colored livewell gelcoat
- Dual port 800 gph, aeration pumps
- LED lighting
- Intake plumbing that prevents water levels from dropping while at speed
- Wide opening for cast net use

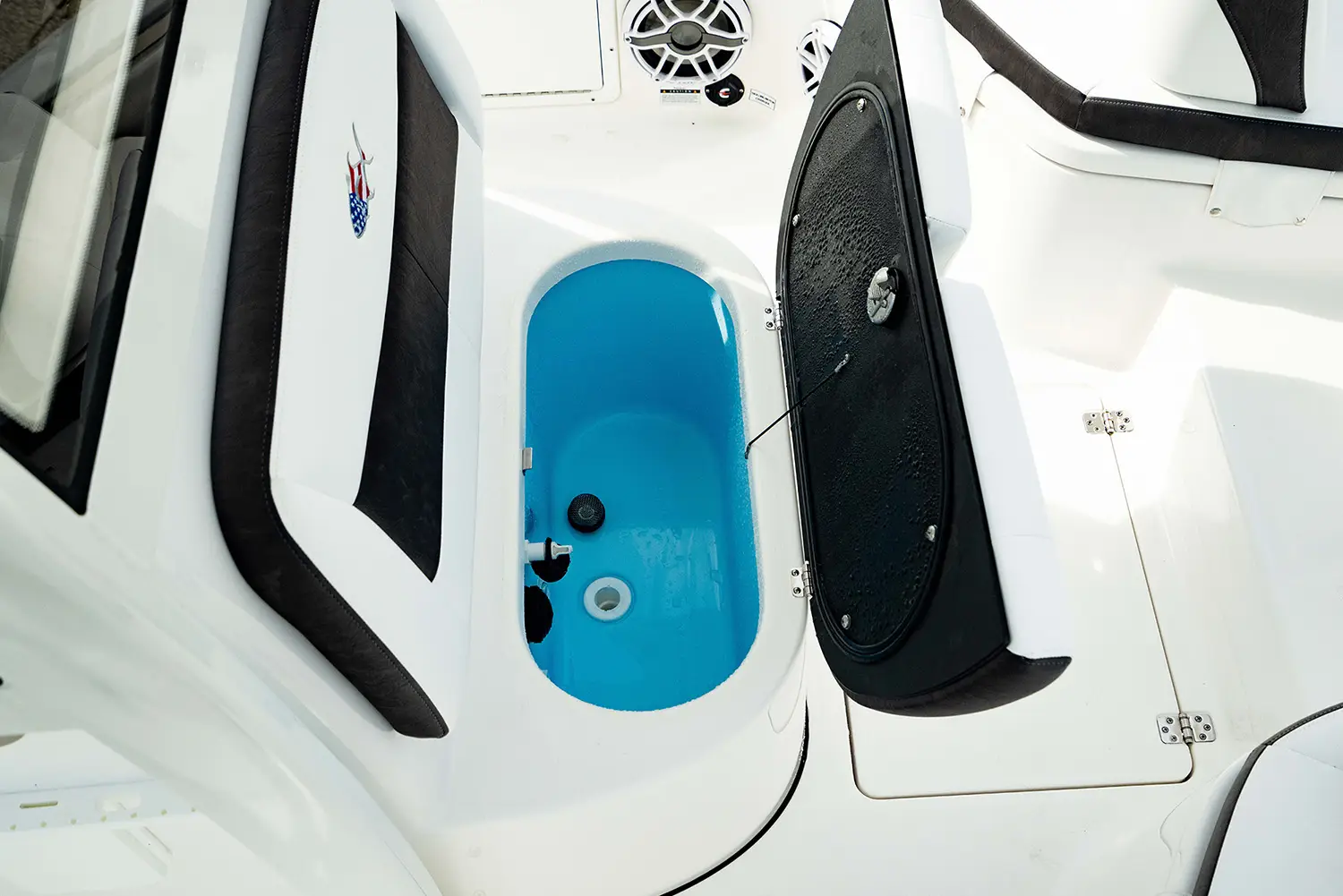

Forward Bait Well
- Insulated 12 gallon forward livewell
- Adjustable aeration jet can be closed to convert baitwell into fully insulated cooler
- Wide opening for cast net use
- Side mounted overflow fitting with removable filter dome means no standpipe to get in the way of netting bait
- Light blue colored livewell gelcoat
- Gasketed livewell lid
All Wells Feature:
- Light blue colored livewell gelcoat
- 800 gph, dual port aeration pumps
- Insulation
- “Marelon” seacocks for safety and easy in-water pump service
- LED lighting
Optional Engines & trolling motors
Optional Engines & Rigging
- Yamaha
- Mercury
- Suzuki
- Engine & house batteries with engine package
Optional Trolling Motors
- MinnKota RipTide ST 112/ iPilot 36 volt with removable bracket, 60″ & 72″
- MinnKota Ulterra 112/ iPilot 36 Volt auto deploy with removable bracket, 60″ & 72″
Note: all factory rigged trolling motors come with a quick disconnect bracket and a battery tender trolling motor plug
Standard Helm & technical features

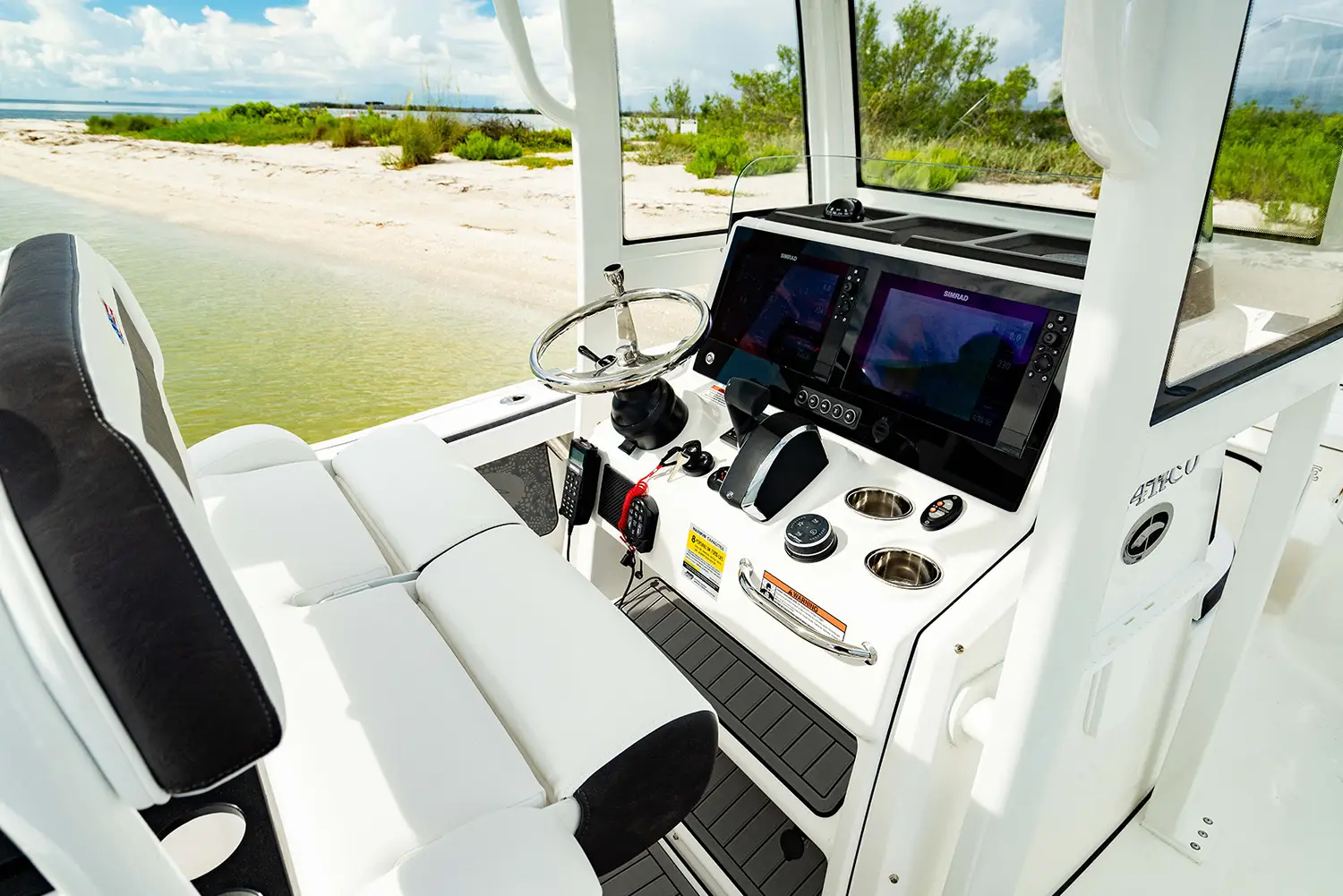

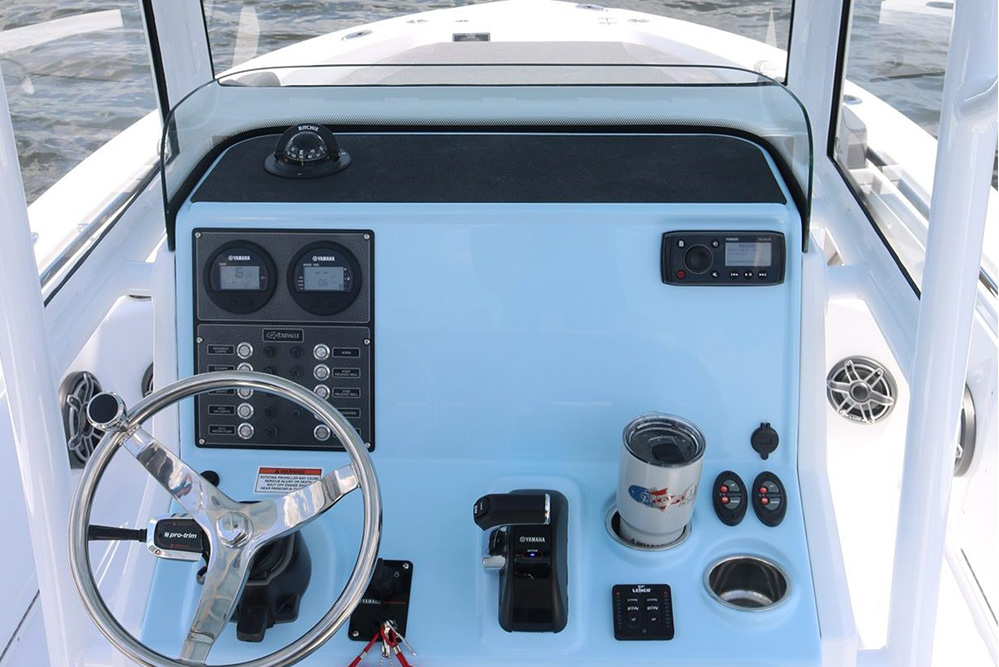

Standard on Our Helm
- Single 12” multifunction Garmin or Simrad display
- Black box VHF radio
- Digital “C-Zone” switching

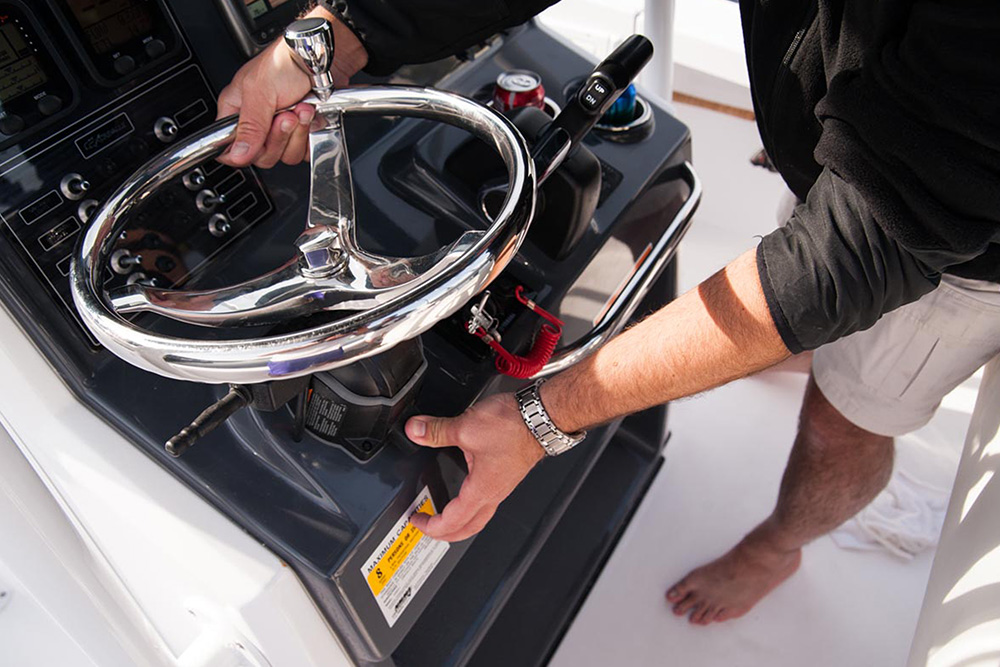

- Deluxe stainless steering wheel with power knob
- Integrated, dual height, nonskid foot rests
- Welded 316 stainless steel console grab rail
- Wireless phone charger
- Compass
- Stainless steel horn
- Engine date on the multifunction display (no gauges)
- Portside helm door
- Individual circuit breakers
- LED lighting inside storage
- Upgraded “JL” stereo/speakers’ system with digital amp
- Integrated engine data on electronics options
- Stainless steel steering wheel with tilt helm
- Synthetic flooring for helm footrest and helm pad.
- Battery charger (2 bank) – engine and house batteries
- Battery charger (3 bank) – trolling motor batteries
Technical Standards
- Tinned copper wiring
- LED cockpit lighting throughout
- Deutsch water resistant plugs on harnesses
- Sealed bussbars
- Heat shrunk electrical terminals
- Circuit breakers (not fuses)
- 8 AWG trolling motor harness
- “Aegis” automatic battery switch on the helm
- LED navigation lights in the stainless steel rubrail insert
- Deluxe battery hold down trays
Standard on Our Upholstery
- High grade “Sileather” upholstery with contoured cushions and seating featuring multi-density foam.
Options
Optional Hull & Deck Equipment
- Swim platform, starboard side (no telescoping ladder)
- Hull sides color
- Hull bottom color
- Gelcoat colored underside of the hardtop and helm face
- Mooring cover
- Casting chair kit (1) fore and (1) aft base, (1) pedestal, (1) seat

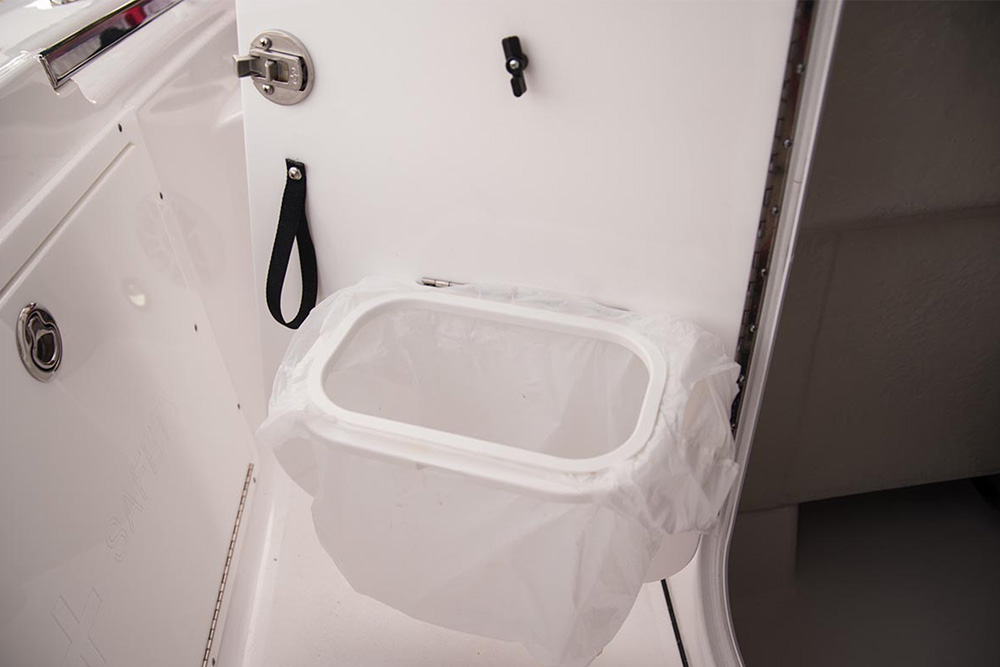

- Porta-potti
- Full second station – Power sliding “Webasto” pass thru with full second station controls, trim tab control, jackplate switch, space for a 7″ flush mount display, upper seat, flip up bolster, rod holders, tackle storage and cup holders
- Additional 12” Garmin or Simrad multifunction display
Optional Mechanical/Electrical
- “Power Pole” – single or dual, 8′ blade, black or white
- “Power Pole” – single or dual, 10’ blade, black or white
- Trim Tabs – “Dometic” with LED indicators
- Garmin or Simrad 24″ radome radar
*Standards and options are subject to change at any time at the discretion of the manufacturer.
